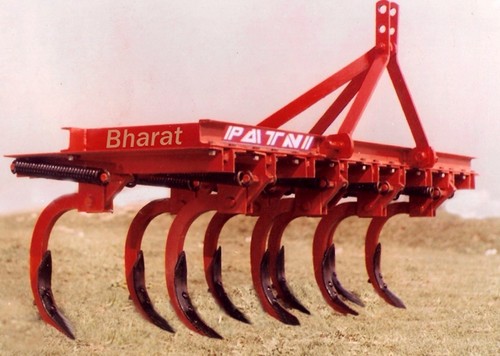

Spring Loaded Tiller

Spring Loaded Tiller
Spring Loaded Tiller
Send Inquiry
Product Code : 015
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price
  • 20000 INR/Unit
Product Specifications
  • Product Type
  • Loaded Tiller
  • Weight (kg)
  • 260-350 Kilograms (kg)
  • Drive Type
  • Gear Drive
  • Start Method
  • Hand Crank
  • Material
  • Metal
Product Description

Dedicated for accomplishing our business tasks proficiently, our company is professionally manufacturing and exporting Spring Loaded Tiller. Available in varied sizes, these tillers are widely used for cultivation in hard or black soil conditions. Manufactured from tested quality metals, these tillers are provided to our clients without any delay. Prior to the delivery, Spring Loaded Tiller is duly tested by our skilled quality controllers on diverse quality norms.


  • These tillers are designed to provide ease in agricultural processes
  • Special kind of springs help to simplify the task by reducing the manual load
  • Owing to their design structure, these are ideal to be used in root obstructed soil
  • These tillers are appreciated for preparing seed beds quickly at correct depth
  • Made out of high quality steel alloy, these tillers are known for high durability
Specifications :
  9 TYNE 11 TYNE
 Main Frame 75x40 mm (Channel) 75x40 mm (Channel)

9.5mm WD,50mm OD 27 Coils
9.5mm WD,50mm OD
27 Coils
50x19 mm (Forged)
Anchor Pin
50x8mm Flat
50x8mm Flat
25 mm
Nuts Frame Bolt Nylock
M 12 x 32 (High Tensile)
M 12 x 32 (High Tensile)
Tyre Bolt
Linkage 3 Point
16x90 mm
50x12 mm

8mm EN-45
16x90 mm
50x12 mm

8mm EN-45
Length 2000 mm 2457 mm
Width 712 mm 712 mm
Tiller Pin
533 mm
533 mm
Weight 215 Kg. (Approx.) 265 Kg. (Approx.)

Further Details:

These tillers are designed for toughest operations.  Spring loaded tyne assembles their strength from heavy duty angles in which tines are fitted with the heavy duty spring which once fixed to the immensely strong main frame cannot move or strain out of position.

Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 10-15 Piece Per Week
  • Delivery Time
  • 2 Days
  • Main Domestic Market
  • All India
